The

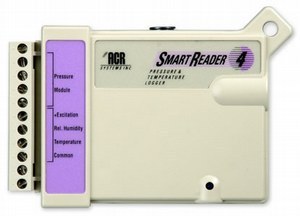

ACR SmartReader 4 5-channel pressure, temperature
& RH data logger records pressure, temperature
and relative humidity. Use it to monitor and
troubleshoot pneumatic systems. With a variety
of pressure sensors available, you can tailor
the logger to suit your needs. As an added
bonus, the SmartReader 4 can also monitor
temperature and relative humidity. All probes
and sensors are sold separately.
Specifications
|
Accessories
|
ACR Pressure Modules
ACR RH-002 RH Sensor
ACR EH-020A Temp/RH Probe
ACR ET Series Temperature Probes |
|
Calibrated Accuracy
|
+/- 0.5% F.S. @ 25°C (77°F) |
|
Pressure Modules
(absolute and gauge)
|
Range and Resolution:
0 to 5 psi (30 kPa) , 0.03 psi (0.21 kPa)
0 to 30 psi (200 kPa) , 0.15 psi (1.0 kPa)
0 to 100 psi (700 kPa) , 0.5 psi (3.5 kPa)
0 to 150 psi (1000 kPa) , 0.5 psi (3.5 kPa) |
|
Accuracy
|
+/- 4% F.S. above 10% of range |
Ordering Information
| Model |
Memory |
Catalog # |
| SR-004 |
32KB |
01-0027 |
