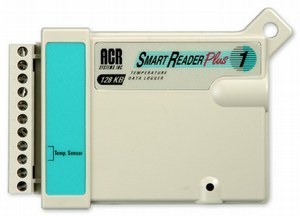

ACR SmartReader Plus 1 2-Channel Temperature Data Logger from ACR Systems

SmartReader,Plus 1,2-Channel,Temperature,Data,Logger,ACR,SystemsThe ACR SmartReader Plus 1 2-channel temperature data logger is a powerful and accurate data logger designed for easy monitoring and recording of temperature. With one internal ambient temperature channel and an input for an optional remote temperature or contact closure sensor, the SmartReader Plus 1 is ideal for quick and accurate temperature recordings in a variety of applications.



Specifications

Channels
Two (one for internal temperature sensor and one for remote sensing of temperature, switch status or resistance)
Accessories
ACR ET Series Temperature Probes or any NTC thermistor probe

ACR Temperature Probes

General Purpose
-35 to 95°C (-30 to 200°F)
Low Temperature
-60 to 55°C (-75 to 130°F)
Low Temp Penetration
-60 to 55°C (-75 to 130°F)
High Temperature
10 to 170°C (50 to 335°F)
Oven Temperature
70 to 255°C (155 to 490°F)
Skin Surface Temperature
20 to 40°C (68 to 104°F)
Pipe Surface Temperature
-35 to 95°C (-30 to 200°F)
Waterproof Temperature
-40 to 105°C (-40 to 221°F)

Ordering Information

Model Memory Catalog #
SRP-001 32 KB 01-0008
SRP-001-128K 128 KB 01-0112
SRP-001-1.5M 1.5 MB 01-0141
