The

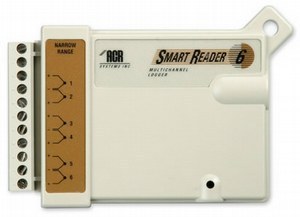

ACR SmartReader 6 7-channel temperature data logger
is ideal for those applications that require multi-site
temperature monitoring of extremely high temperatures
or wide temperature ranges. The logger has one internal
channel for measuring ambient temperature and six
external channels for use with ACR thermocouple
wire or any J, K, S or T type thermocouple wire.
Specifications
|
Accuracy
|
+/- 1% of range + resolution |
|
Accessories
|
ACR Thermocouple Wire or any J, K, S, T and E type thermocouples |
|
Thermocouple Range and Resolution
|
NARROW CHANNEL
J type: -20 to 190ºC (0 to 370ºF), 1.4ºC (2.5ºF)
K type: -25 to 230ºC (-10 to 440ºF), 1.7ºC (3ºF)
S type: 0 to 960ºC (32 to 1750ºF), 7.0ºC (12.6ºF)
T type: -35 to 200ºC (-30 to 390ºF), 1.7ºC (3ºF)
WIDE CHANNEL
J type: -50 to 600ºC (-55 to 1100ºF), 5ºC (9ºF)
K type: -100 to 1150ºC (-145 to 2100ºF), 6.7ºC (12ºF)
S type: 0 to 1760ºC (32 to 3200ºF), 23ºC (41.5ºF)
T type: -200 to 400ºC (-325 to 750ºF), 6.7ºC (12ºF) |
Ordering Information
| Model |
Memory |
Catalog # |
| SR-006N |
32KB |
01-0029 |
| SR-006W |
32KB |
01-0030 |
