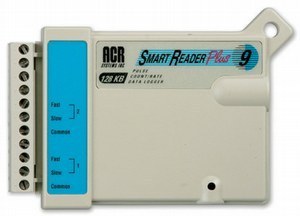

ACR SmartReader Plus 9 2-Channel Pulse Data Logger

SmartReader,Plus 9,2-Channel,Pulse,Data,Logger,ACR,SystemsThe ACR SmartReader Plus 9 2-channel pulse data logger is a versatile data logger designed for easy counting and recording of switch contact closures and voltage pulses. It has two pulse/contact channels.

Note for "switch status" logging - see SmartReader Plus 8.





Range
4095 pulses/sample period
Accuracy
+/- 1 pulse/sample period
Input Voltage
Low = 0 to 0.5 volts DC
High = 4.5 to 24 volts DC
Input Impedance
> 1.0 M ohm for Vin < 5V
> 4.0 K ohm for Vin > 5V
Min. Pulse Width
50% Duty Cycle:
Slow input: 2 milliseconds
Fast input: 10 microseconds
Maximum Frequency
100 KHz
Switch Inputs
Input Type: Uncommitted “dry” contacts (relay or switch)
Excitation: 5 microamps contact current
3.6 volts open circuit
Contacts: Sealed gold-plated recommended

Ordering Information

Model Memory Catalog #
SRP-009 32 KB 01-0016
SRP-009-128K 128 KB 01-0130

SmartReader Plus 1
2-Channel Temperature
Data Logger
SmartReader Plus 2
4-Channel Relative Humidity & Temperature Data Logger
SmartReader Plus 3
8-Channel AC Current, Voltage & Temperature Data Logger
SmartReader Plus 4
4-Channel Pressure, Temperature & Relative Humidity Data Logger
SmartReader Plus 4 LPD
2-Channel Low Pressure Differential Data Logger

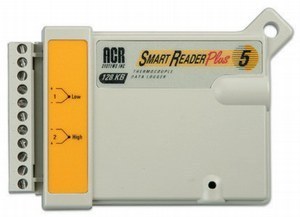

SmartReader Plus 5
